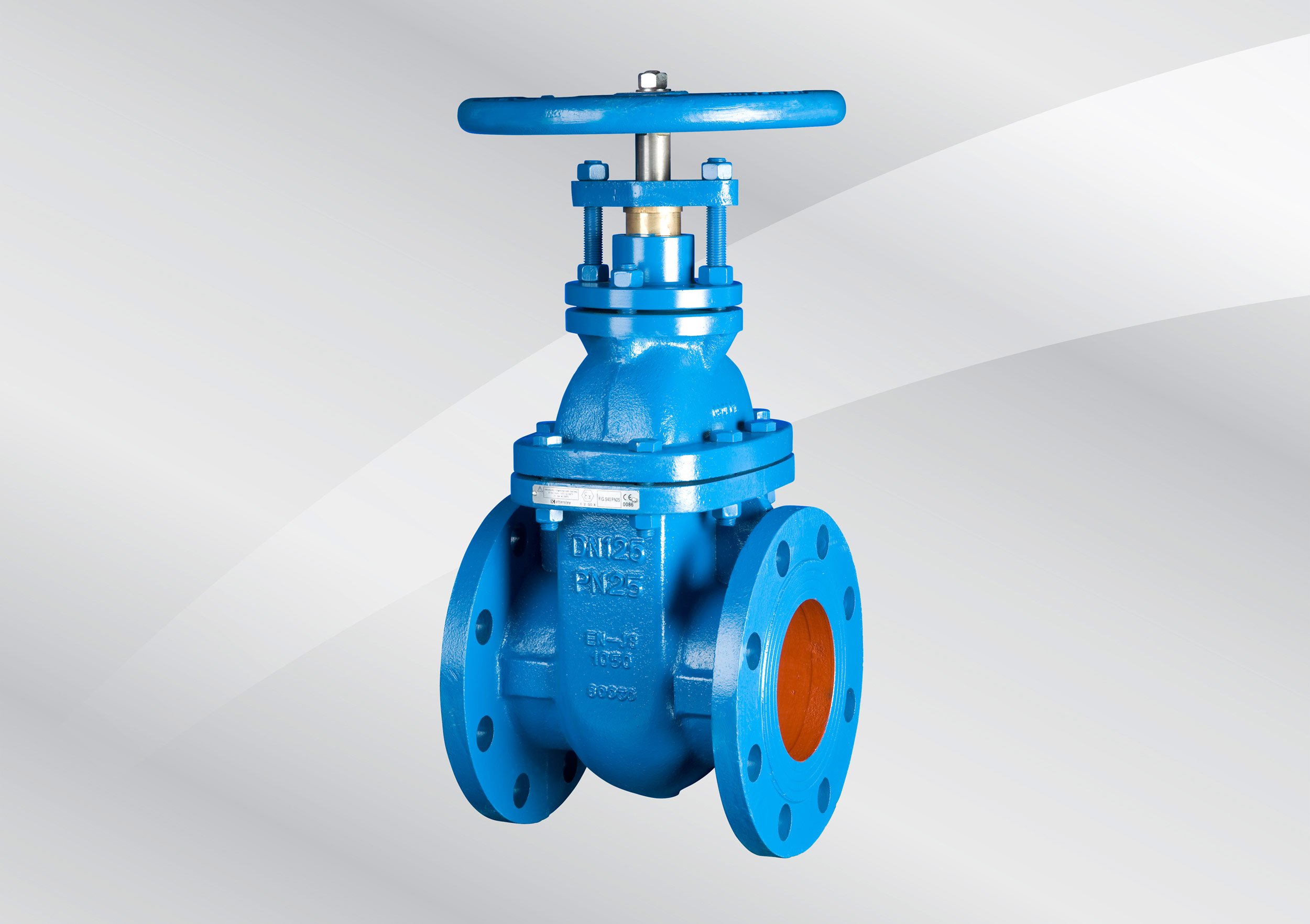

Fig. M540

Gate Valves – Ductile Iron – Available until stocks last

in the a
  • Ductile Iron with integral flanges.
  • Inside screw pattern with non-rising stem.
  • Ideal for use for non-corrosive and reasonably clean services.
  • Seat rings are threaded and securely fixed into the body.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
50mm to 150mm
Pressure rating
PN25
End Connnections
Flanged to BS EN 1092-2 PN25
Test pressure
Shell: 37.5 bar
Seat: 27.5 bar
Material
Ductile Iron
Pressure / Temperature
25 bar at -10 to 120ºC
21.5 bar at 220ºC
BS EN 1171 PN25
