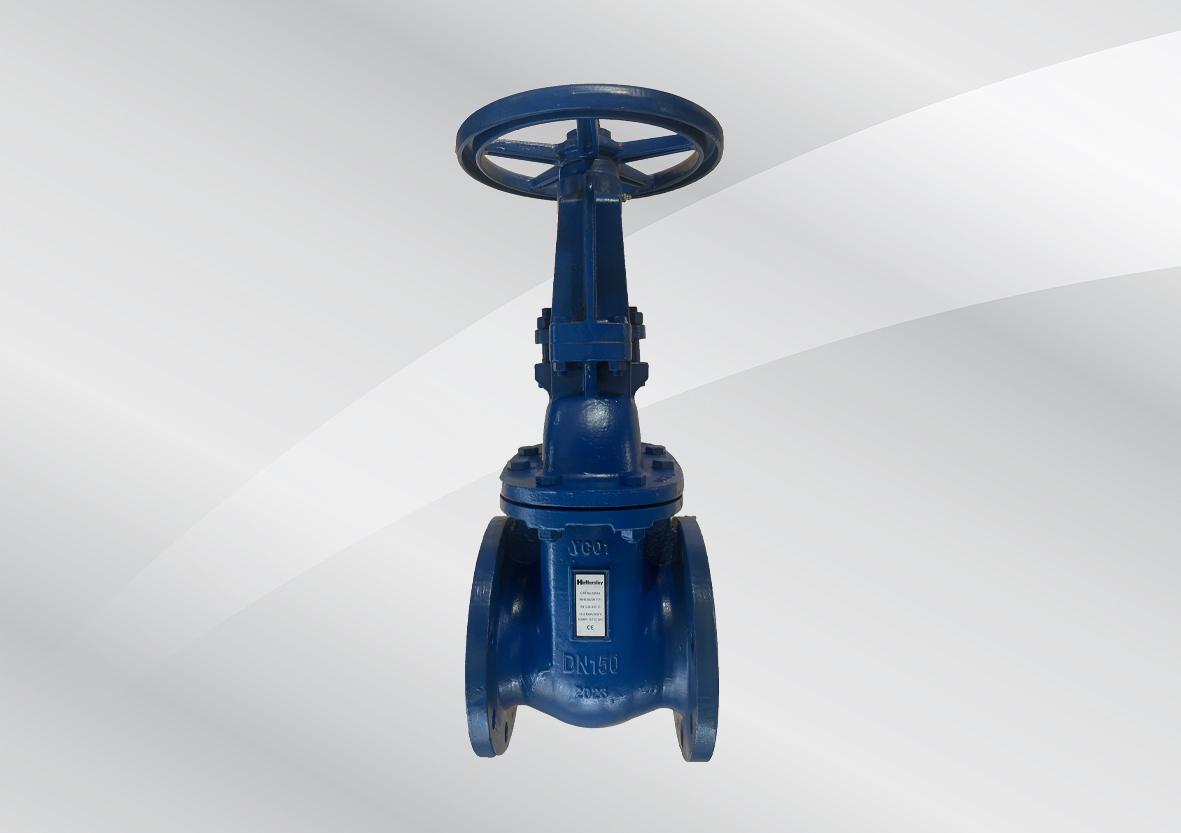

Fig. M544

Gate Valves – Ductile Iron

in the a
  • Ductile Iron with integral flanges.
  • Outside screw pattern with rising stem.
  • Ideal for use on more active media where fluid might have an adverse effect on thread.
  • Flanged ends require no pipe threading.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
65mm to 300mm
Pressure rating
PN16
End Connnections
Flanged to BS EN 1092-2 PN16
Test pressure
Shell: 24 bar
Seat: 17.6 bar
Material
Ductile Iron
Pressure / Temperature
16 bar at -10 to 120ºC
11.8 bar at 230ºC
BS EN 1171 PN16
