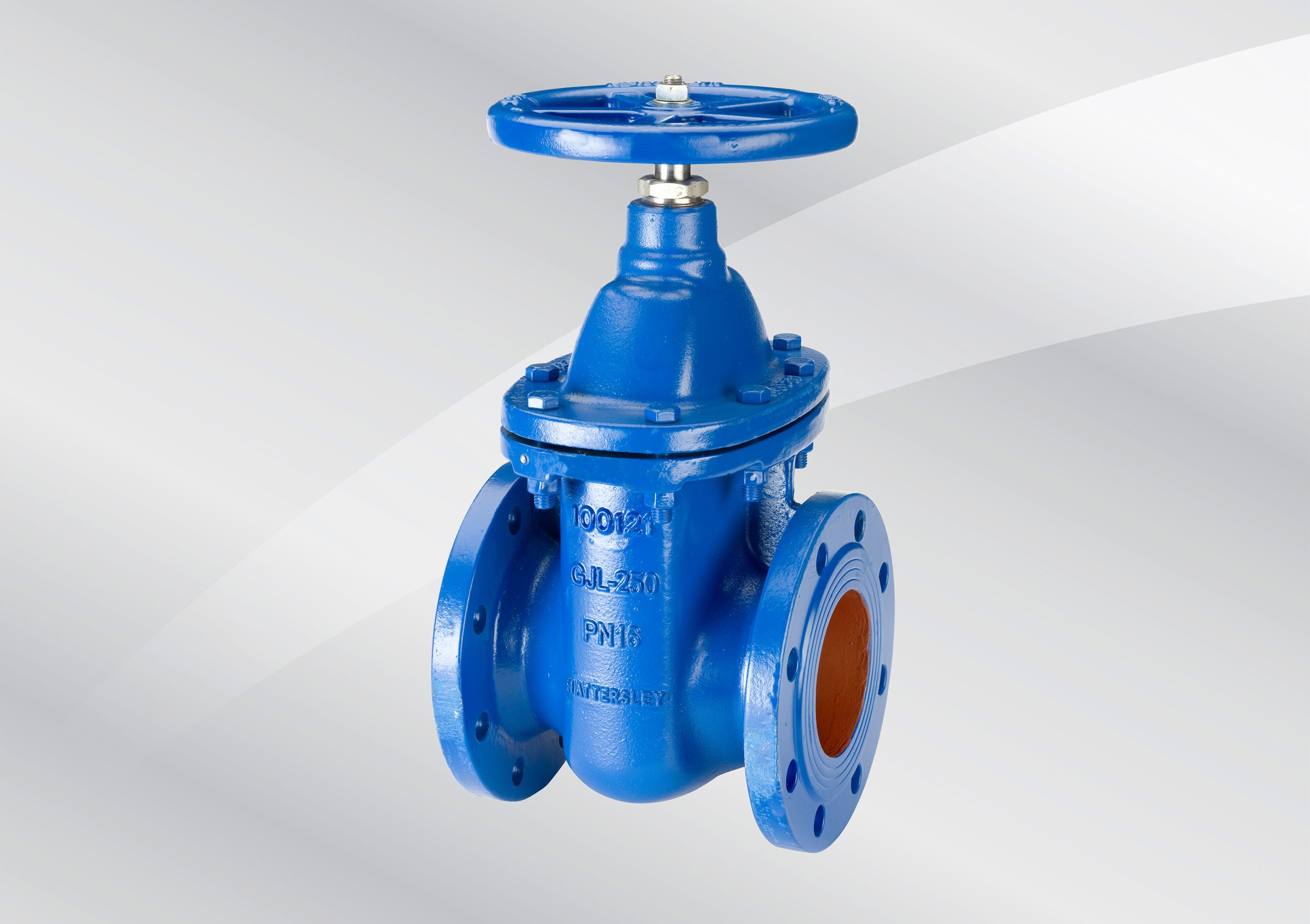

Fig. M541

Gate Valves – Cast Iron

in the a
  • Cast Iron with integral flanges.
  • Flanged ends require no pipe threading.
  • Inside screw pattern with non-rising stem
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
50mm to 300mm
Pressure rating
PN16
End Connnections
Flanged to BS EN 1092-2 PN16
Test pressure
Shell: 24 bar
Seat: 17.6 bar
Material
Cast Iron
Pressure / Temperature
-10 to 120° C at 16 bar
200°C at 12.8 bar

Product Downloads

Datasheet
Installation Manual
BIM
Additional Files
