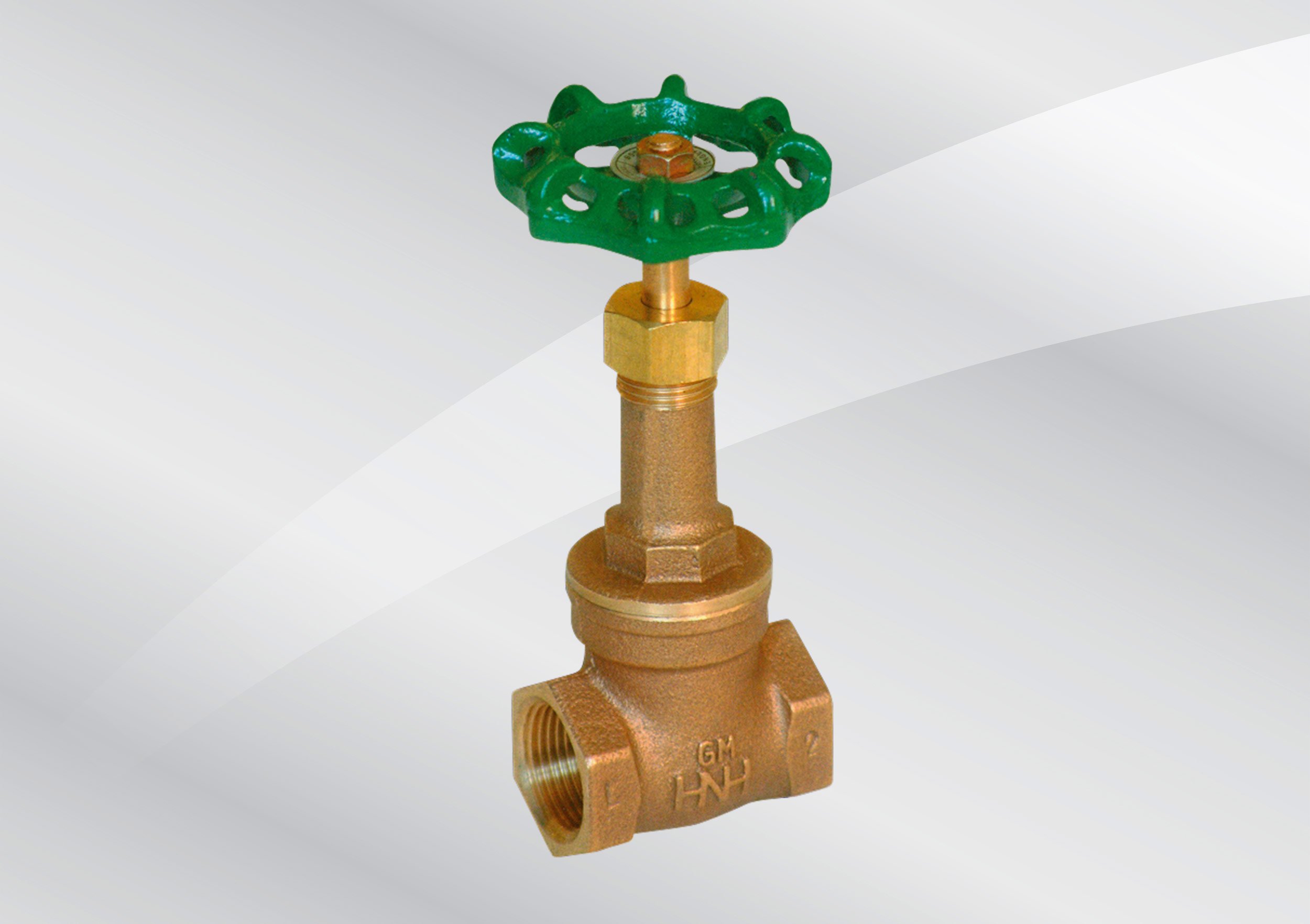

Fig. C618

Export Gate Valve – Bronze

in the a
  • Robust and high quality bronze body with integral seating surfaces.
  • Inside screw pattern with rising stem
  • Suitable for high pressures up to 20 bar
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
1/2" to 2"
Pressure rating
PN20
Test pressure
Shell: 30 bar
Seat: 22 bar
Material
Bronze
End Connnections
Taper threaded BS EN 10226 (ISO 7-1) formerly BS 21.
Pressure / Temperature
9 bar at 180 degrees
20 bar from -10 to 100 degrees

Product Downloads

Datasheet
Installation Manual
BIM
