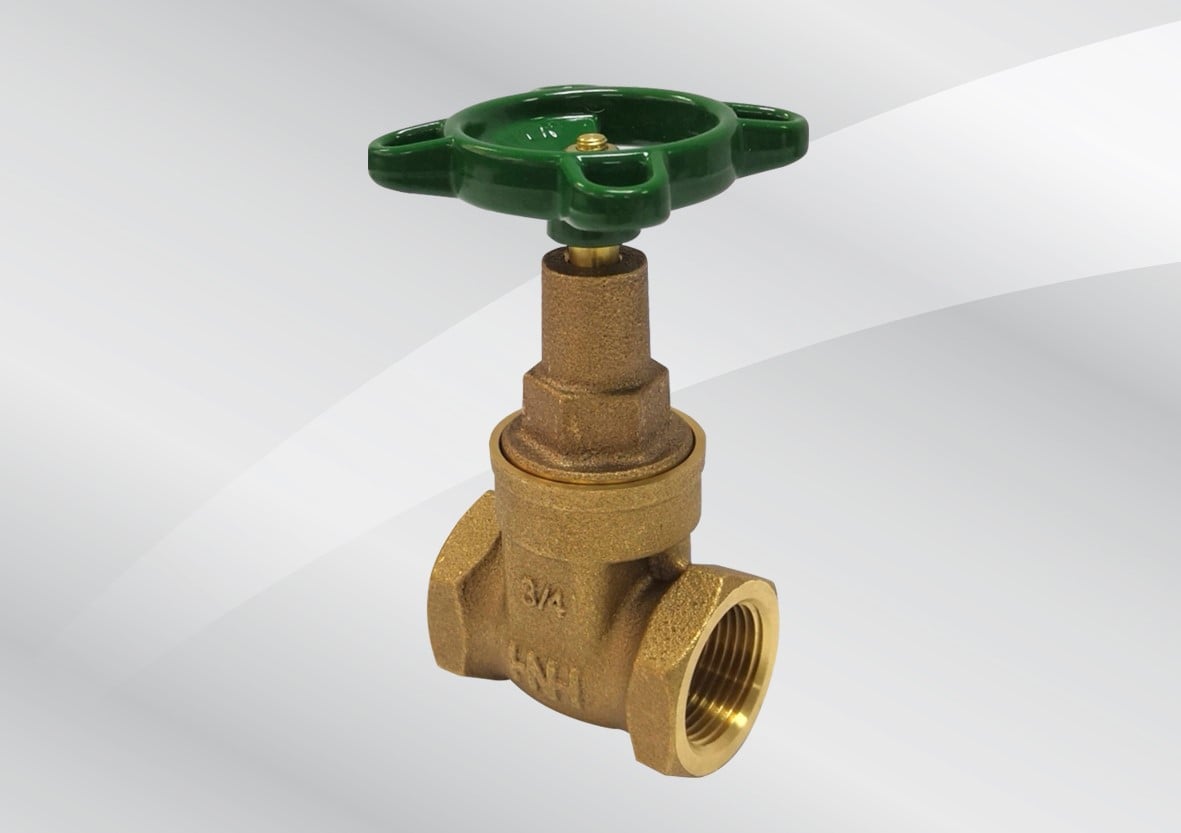

Fig. C31

Gate Valves – Bronze

in the a
  • Robust and high quality bronze body with integral seating surfaces.
  • Inside screw pattern with non-rising stem.
  • Suitable for high pressures up to 16 bar.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
1/2" to 2"
Pressure rating
PN16
End Connnections
Taper threaded BS EN 10226 (ISO 7-1) formerly BS 21.
Test pressure
Each valve is individually hydrostatically / air
tested to BS EN 12266 at the following test.
Shell: 20 bar
Seat: 6 bar
Pressure / Temperature
16 bar from -10 to 100 C
7 bar at 170 C
