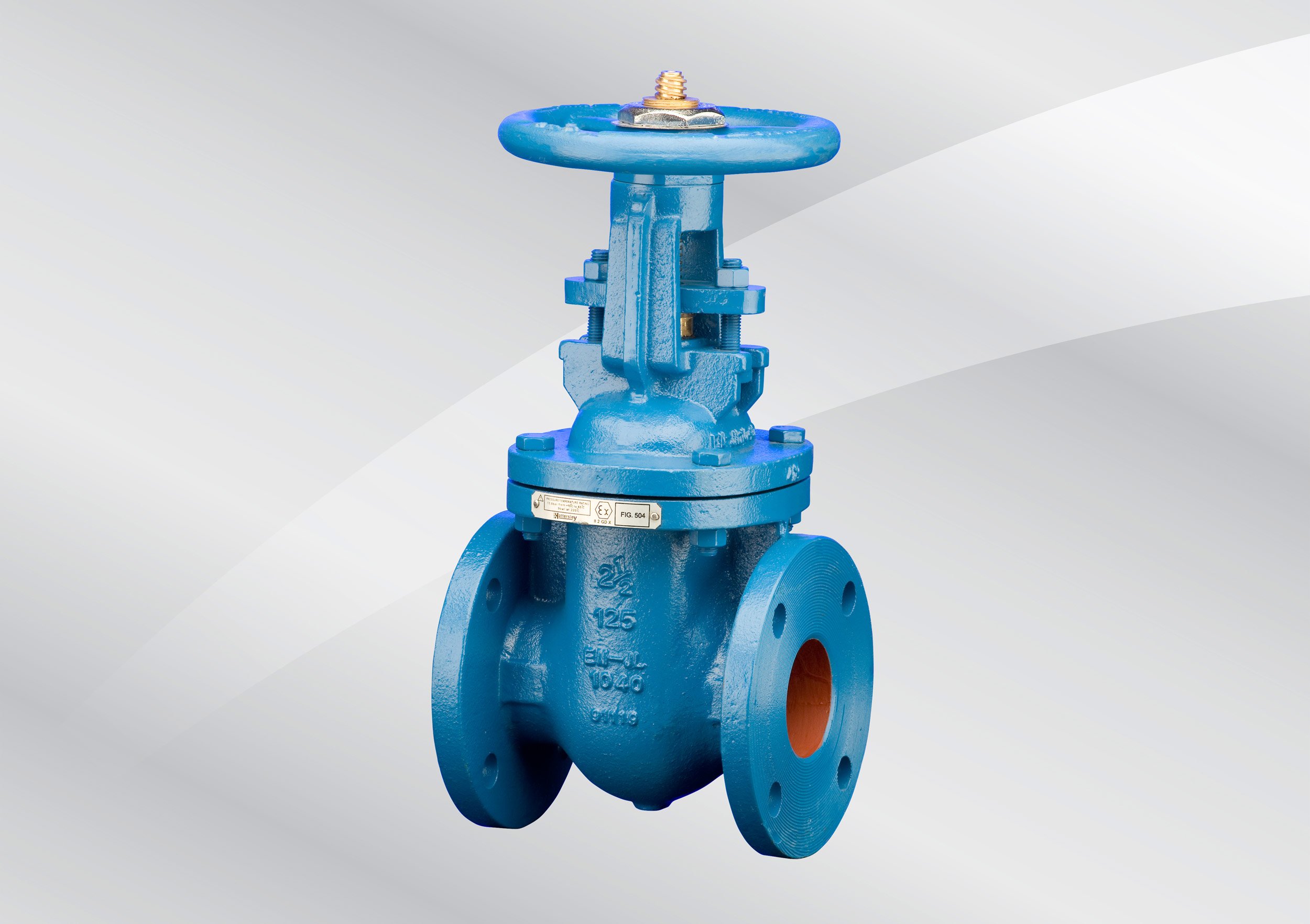

Fig. 504

Gate Valves – Cast Iron

in the a
  • Ductile iron with integral flanges.
  • Outside screw pattern with rising stem.
  • Ideal for use on more active media where fluid might have an adverse affect on thread.
  • Flanged ends require no pipe threading.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
50mm to 600mm
Pressure rating
Class 125
End Connnections
Flanged to ANSI B16.1 Class 125
Material
Cast Iron
Test pressure
Shell: 24.1 bar
Seat: 15.2 bar
Pressure / Temperature
BS EN 1092-2 Class 125
13.8 bar from -10 to 65ºC
8.6 bar at 232ºC

Product Downloads

Datasheet
Installation Manual
BIM
Additional Files
