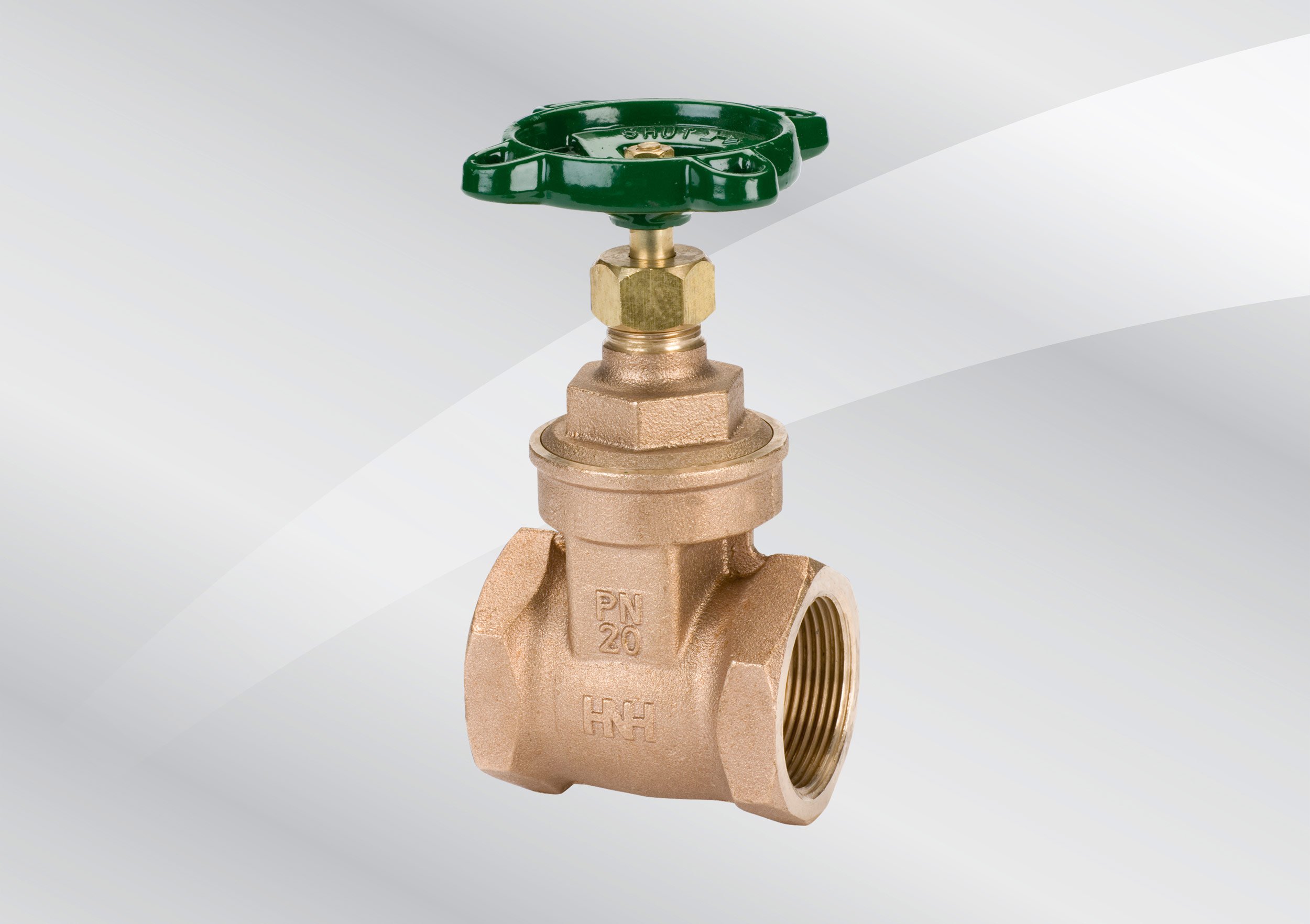

Fig. 33X & 33XLS

Gate Valves – Bronze

in the a
  • Robust and high quality bronze body with integral seating surfaces.
  • Kitemarked to BS EN 12288.
  • WRAS approved for use on wholesome (potable) water in sizes 1/2″ – 2” only
  • WRAS approval temperature 85ºC
  • Inside screw pattern with non-rising stem
  • WRAS Approved Product
  • BSI Kitemark
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
1/4" to 4"
Pressure rating
PN20
End Connnections
Taper threaded BS EN 10226 formerly BS 21
Material
Bronze
Pressure / Temperature
BSEN12288 PN20 Series B
9 bar at 180°C
20 bar from -10 to 100°C
Test pressure
Body: 6 bar Seat: 6 bar
Hydraulic - 21/2” to 4” -
Pneumatic - 1/4” to 2” -
Body: 30 bar Seat: 22 Bar

Product Downloads

Datasheet
Installation Manual
CAD Files
BIM
Certificate
Kitemark
Additional Files
