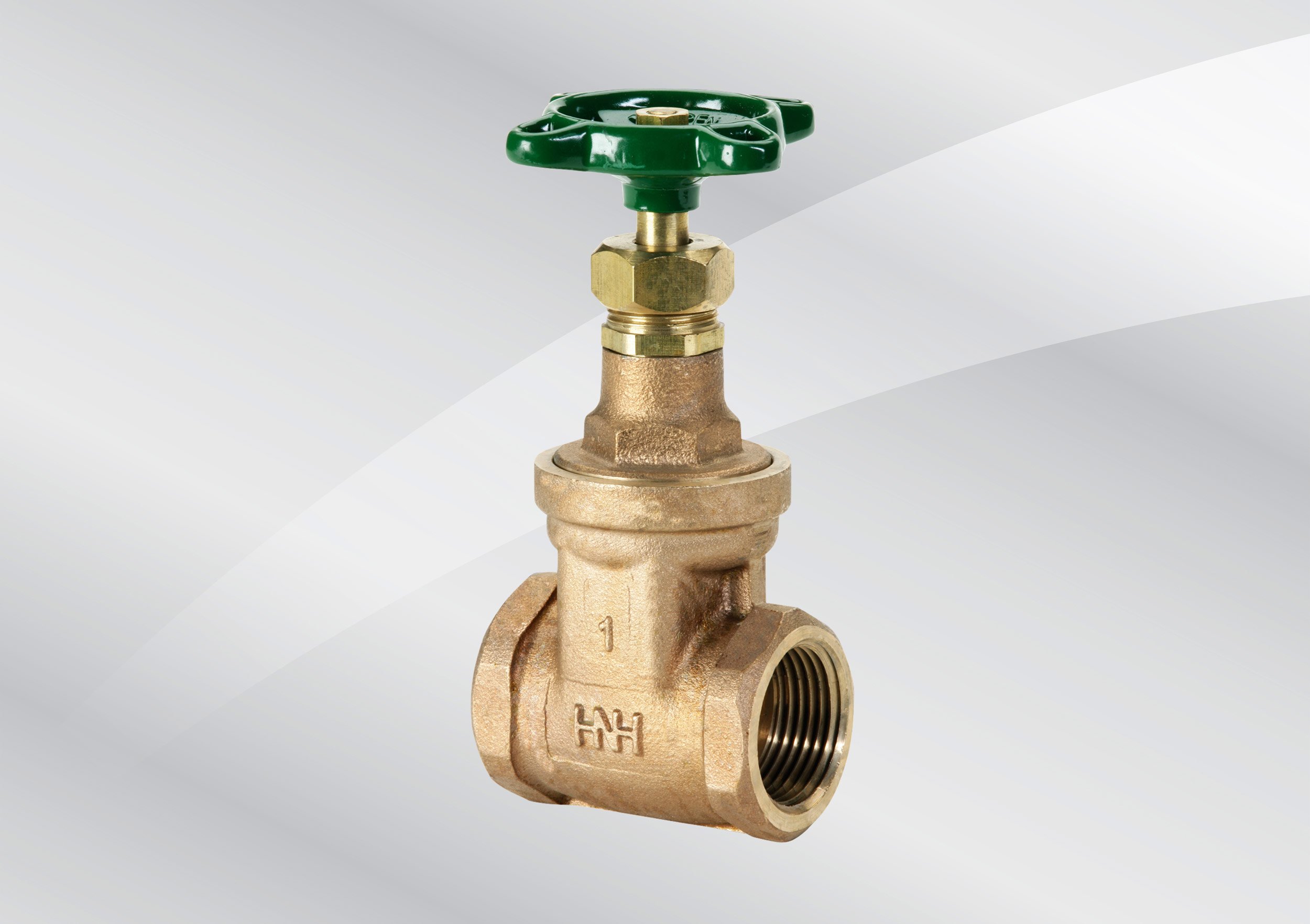

Fig. 33

Gate Valves – Bronze

in the a
  • Robust and high quality bronze body with integral seating surfaces.
  • Inside screw pattern with non-rising stem.
  • Kitemarked to BS EN 12288.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
1/4" to 2"
Pressure rating
PN32
End Connnections
Threaded to BS EN 10226-2.
Material
Bronze
Test pressure
Shell: 48 bar
Seat: 35.2 bar
Pressure / Temperature
BS EN 12288 PN32 Series B
14 bar at 198ºC
32 bar from -10 to 100ºC

Product Downloads

Datasheet
Installation Manual
BIM
Additional Files
