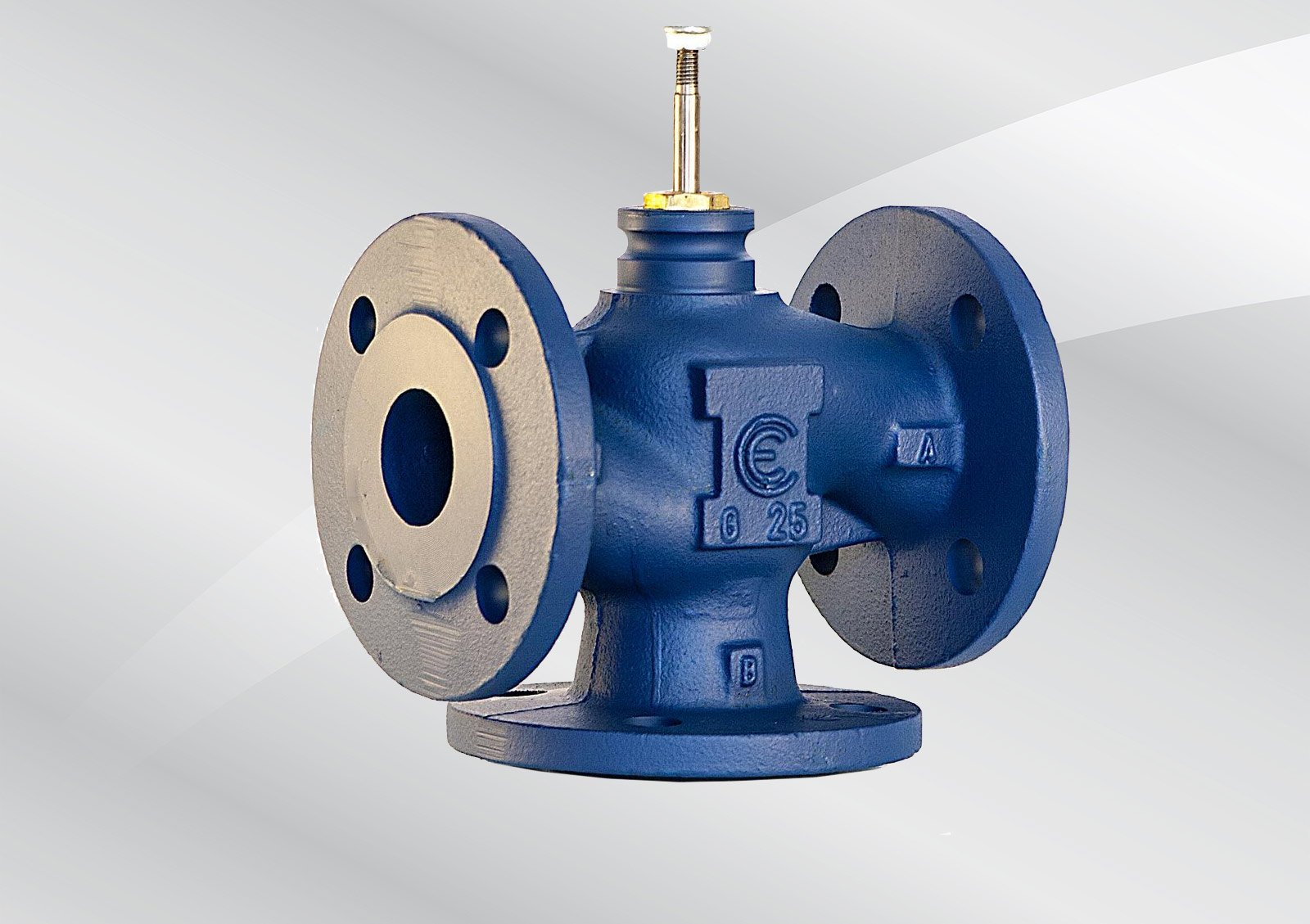

Fig. 1903F

3 Port Flanged Valve

in the a Fig. 1903F 3 Port Valve
  • Hattersley 2 flanged valves are ideally suited for fluid control of hydronic systems, including civil and industrial applications
  • Low seat leakage rate (0.03%) to EN 1349
  • Equal percentage control characteristics to give linear control when used with typical heat exchangers (direct way on 3-port valves only)
  • High close off pressures (dependent on actuator selection)
  • Rated to 150°C max temperature suitable for overheated water or steam applications

Product Overview

Please refer to Datasheet for full technical information

Size
DN65/DN200
End Connnections
PN16 flanges
Pressure rating
PN16
Material
Grey cast iron body

Product Downloads

Datasheet
