Fig. 1902 - Cast Iron

2 Port Valve

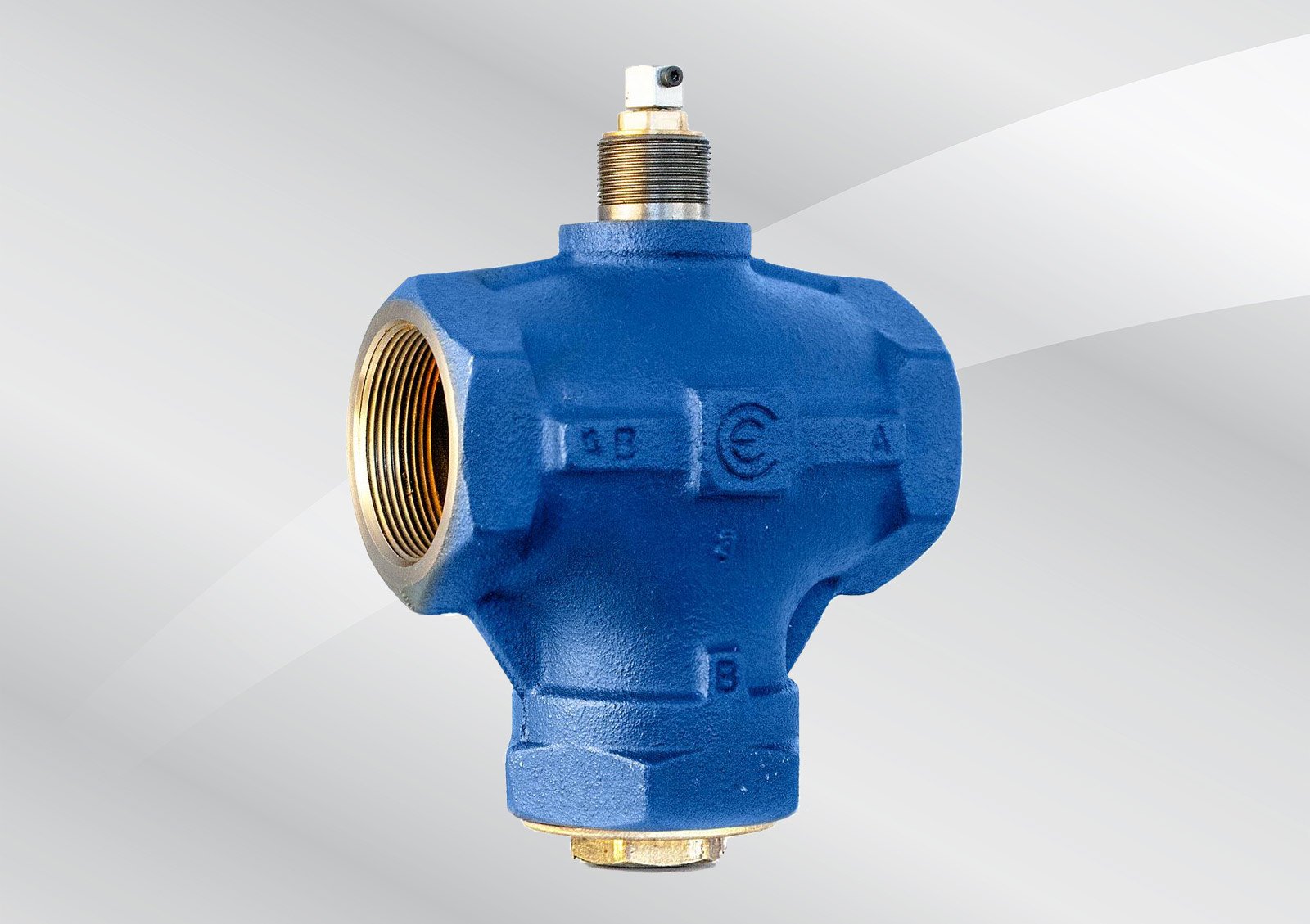

in the a D102B Cast Iron Hattersley
  • Offers zone, terminal bypass and end of line applications
  • Simple integration into the BMS using the Hattersley Modulating (ACT1933M), 3 Point (ACT1933TP) and Failsafe (ACT1933FS) actuators
  • Easy mounting to pipework or terminal units in confined spaces due to the compact and lightweight design
  • Isolation function with Class IV leakage up to 225kPa
  • PN16 rated product, suitable for building services applications and services with up to 30% Glycol

Product Overview

Please refer to Datasheet for full technical information

Size
DN20 / DN50
Pressure rating
PN16
Temperature Rating
5°C - 95°C
End Connnections
BSP Female Parallel ISO-228
Kvs
3/4 inch - 6.3 Kvs
1 inch - 10 Kvs
1 1/4 inch - 14 Kvs
1 1/2 inch - 18 Kvs
2 inch - 25 Kvs

Product Downloads

Datasheet
