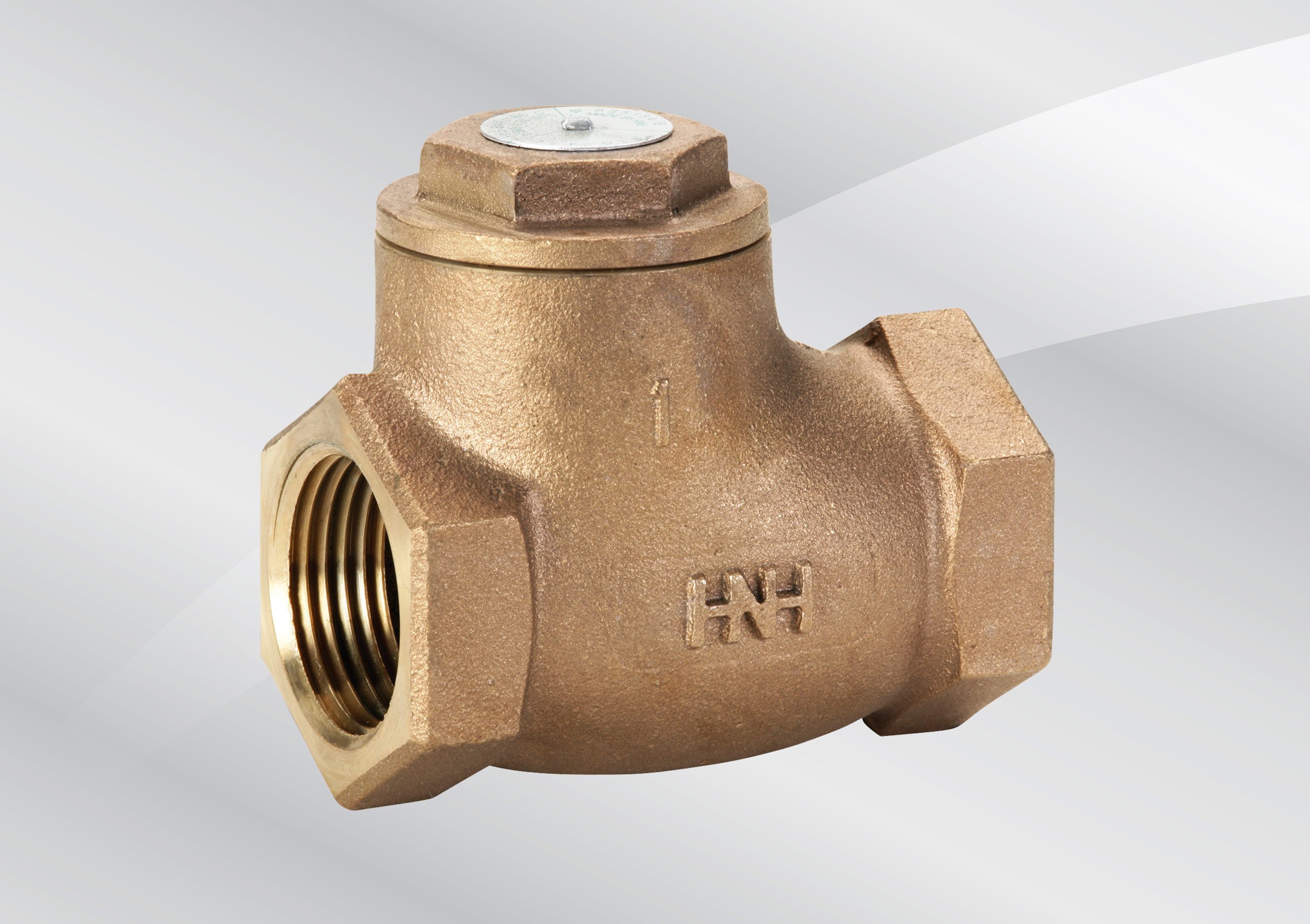

Fig. 3047

Check Valves – Swing Pattern – Bronze

in the a
  • Horizontal swing pattern.
  • Robust and high quality bronze body.
  • Various disc materials available.
  • Taper threaded to BS EN10226 ISO 7-1 (BS 21)
  • BIM File Available
  • BSI Kitemark

Product Overview

Please refer to Datasheet for full technical information

Size
1/2" to 2"
Pressure rating
PN25
Material
Bronze
End Connnections
Taper threaded to BS EN10226 ISO 7-1 (BS 21)
Test pressure
Shell: 6 bar - pneumatic
Seat: 27.5 bar - hydraulic
Pressure / Temperature
BS 5154:1991 PN25
25 bar from -10 to restricted 90ºC

Product Downloads

Datasheet
Installation Manual
BIM
Kitemark
Additional Files
