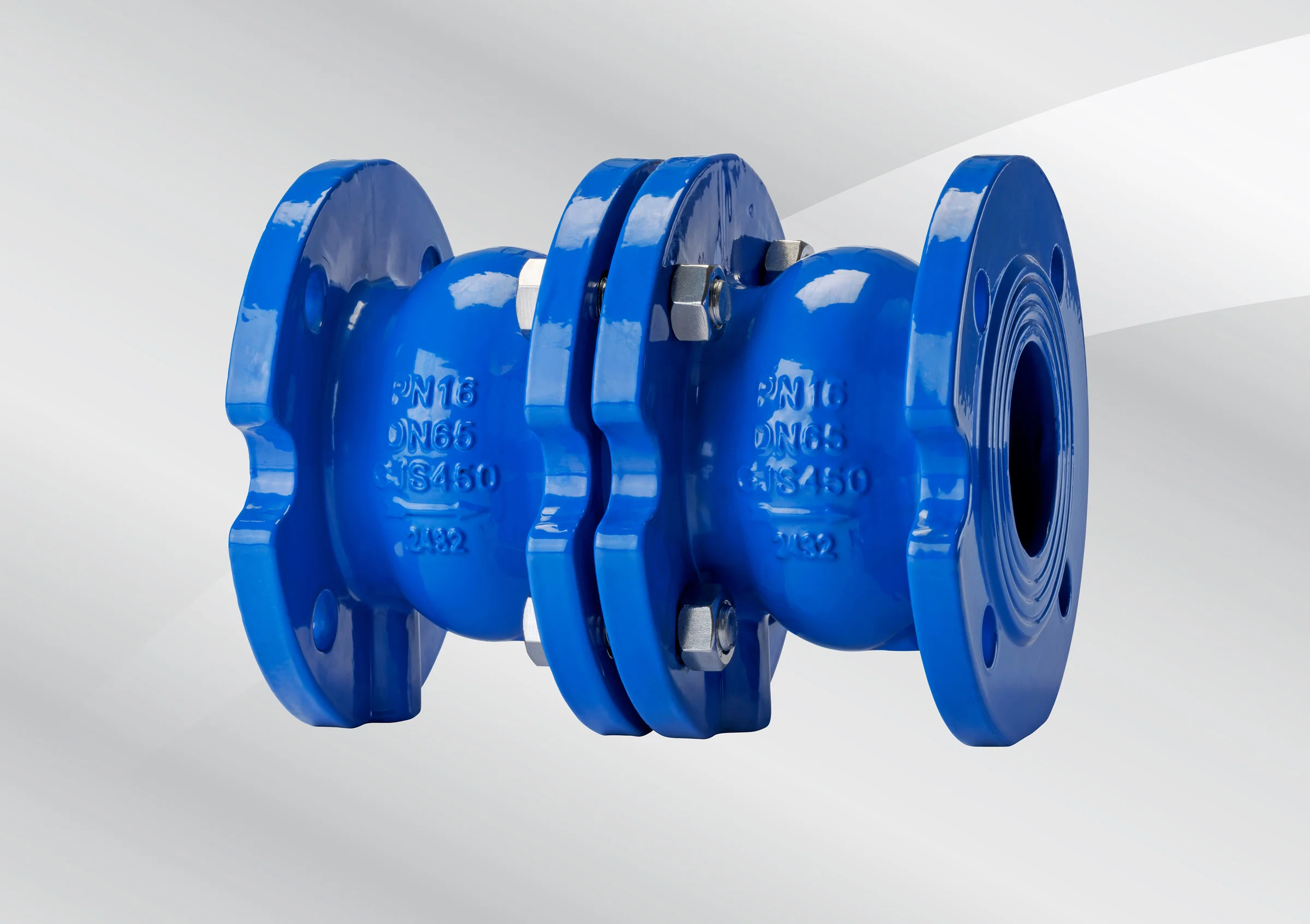

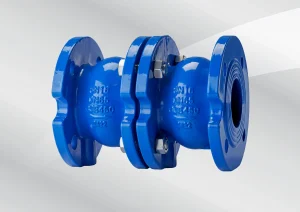

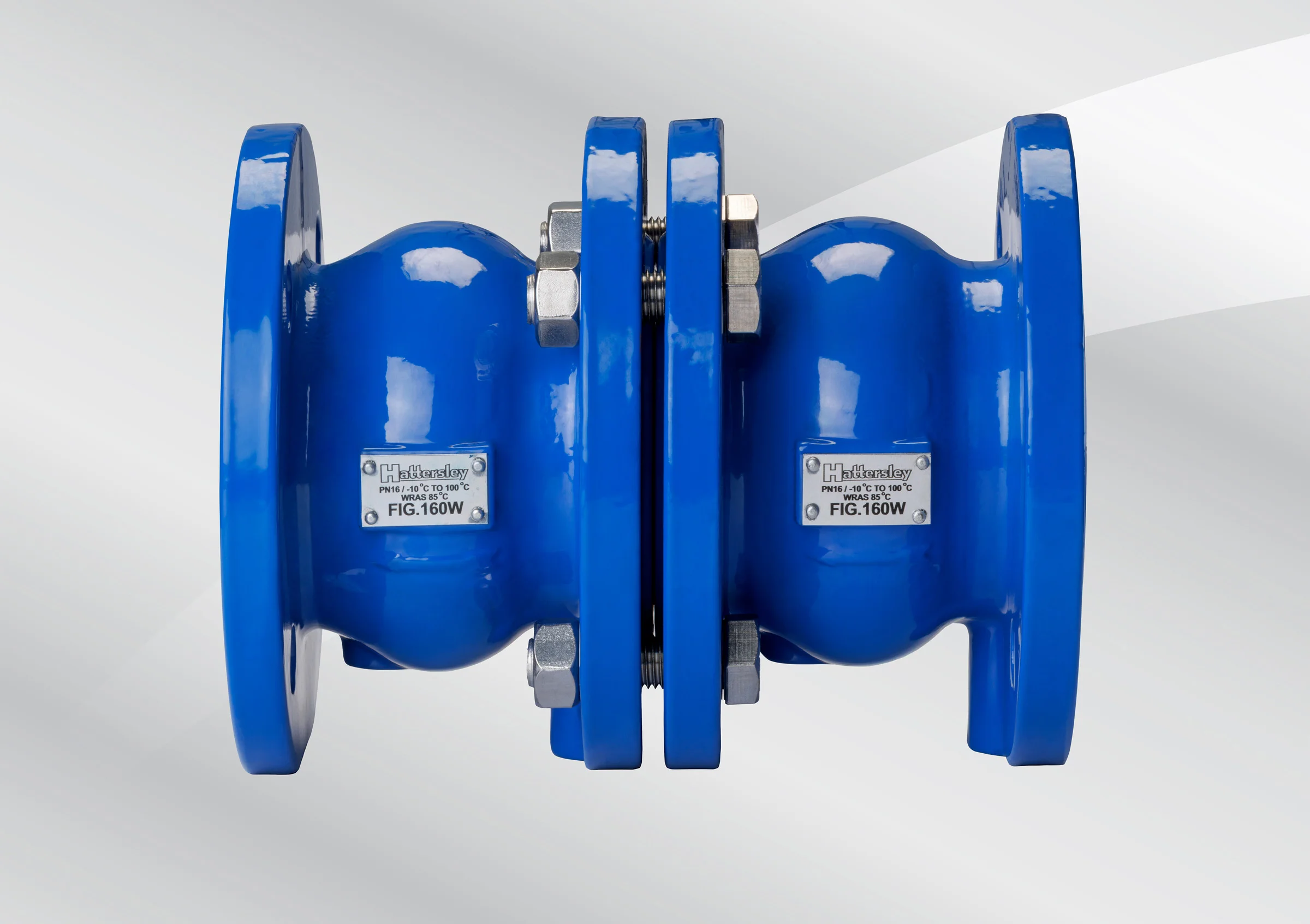

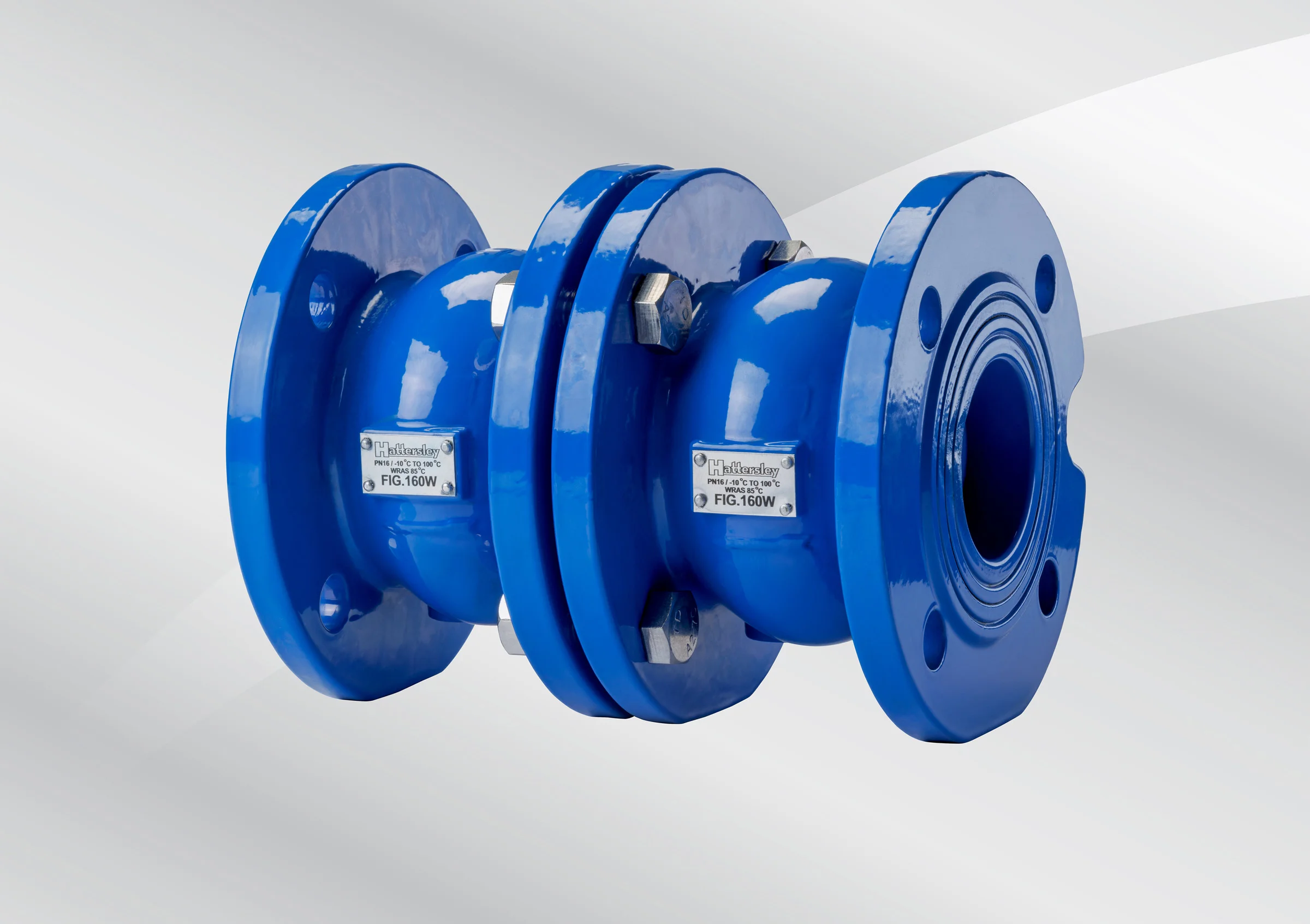

Fig. 260W

Double Non-Return Valve – Ductile Iron

in the a Fig. 260W - Double Non-Return Valve – Ductile Iron
Fig. 260W - Double Non-Return Valve – Ductile Iron Fig. 260W - Double Non-Return Valve – Ductile Iron Fig. 260W - Double Non-Return Valve – Ductile Iron
  • Two WRAS approved single non-return valves (to 85°C) bolted together
  • Spring loaded axially guided disc
  • Positive non-slam shut-off
  • Resilient seat
  • WRAS Approved fusion bonded epoxy internal and external coating

Product Overview

Please refer to Datasheet for full technical information

Size
DN50 to DN300
Pressure rating
PN16
Temperature Rating
-10 to 100°C
End Connnections
Flanged to BS EN 1092-2 PN16
Material
Ductile Iron
