Fig. 160W

Single Non-Return Valve – Ductile Iron

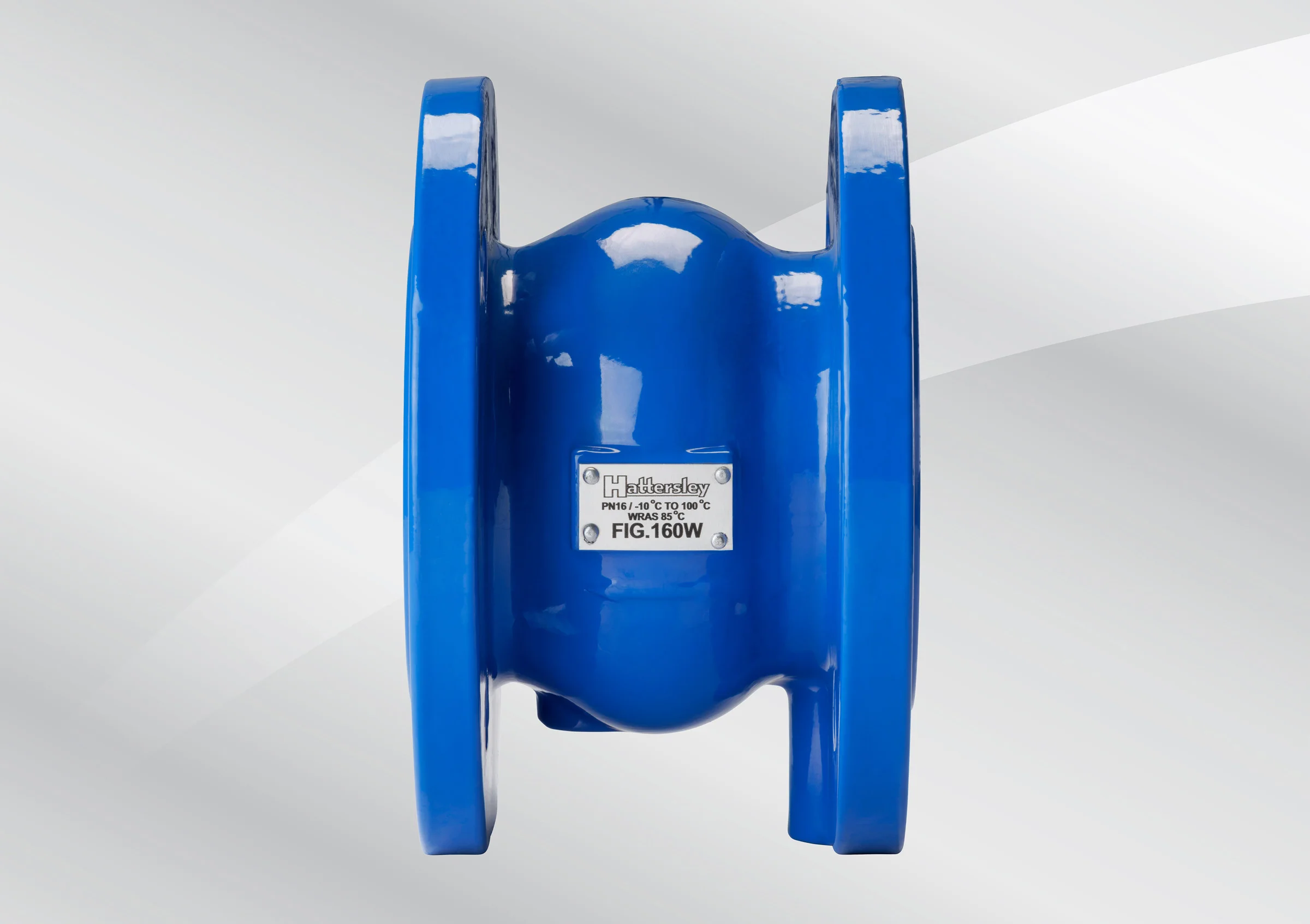

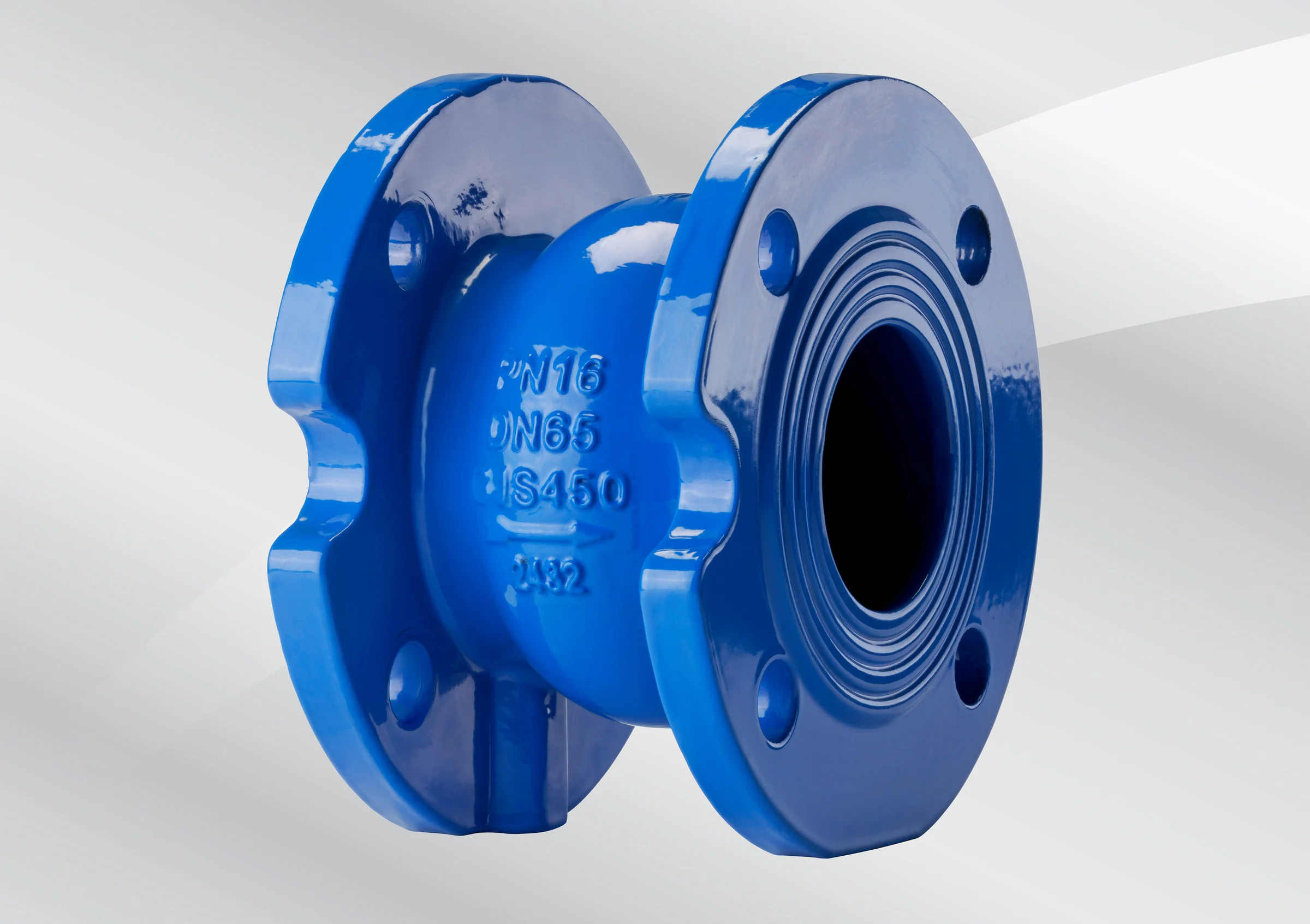

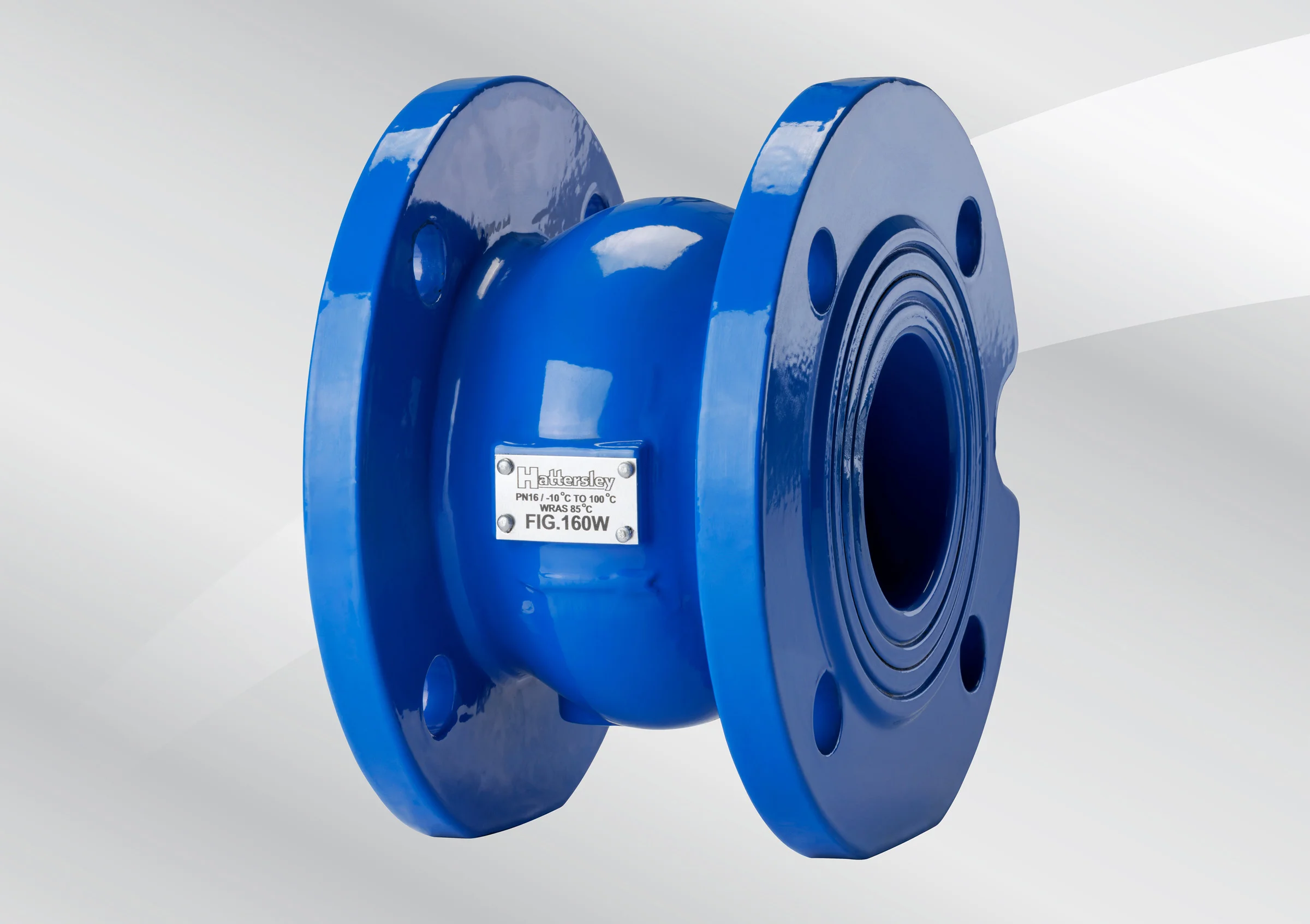

in the a Fig. 160W Single Non-Return Valve – Ductile Iron
Fig. 160W Single Non-Return Valve – Ductile Iron Fig. 160W Single Non-Return Valve – Ductile Iron Fig. 160W Single Non-Return Valve – Ductile Iron
  • Spring loaded axially guided disc, for use in domestic water systems
  • Positive non-slam shut-off
  • WRAS approved for use with wholesome (potable) water to 85°C
  • Resilient seat
  • WRAS Approved fusion bonded epoxy internal and external coating
  • WRAS Approved Product

Product Overview

Please refer to Datasheet for full technical information

Size
DN50 to DN300
Pressure rating
PN16
Temperature Rating
-10°C to 120°C (WRAS to 85°C)
End Connnections
Flanged to BS EN 1092-2 PN16
Material
Ductile Iron
