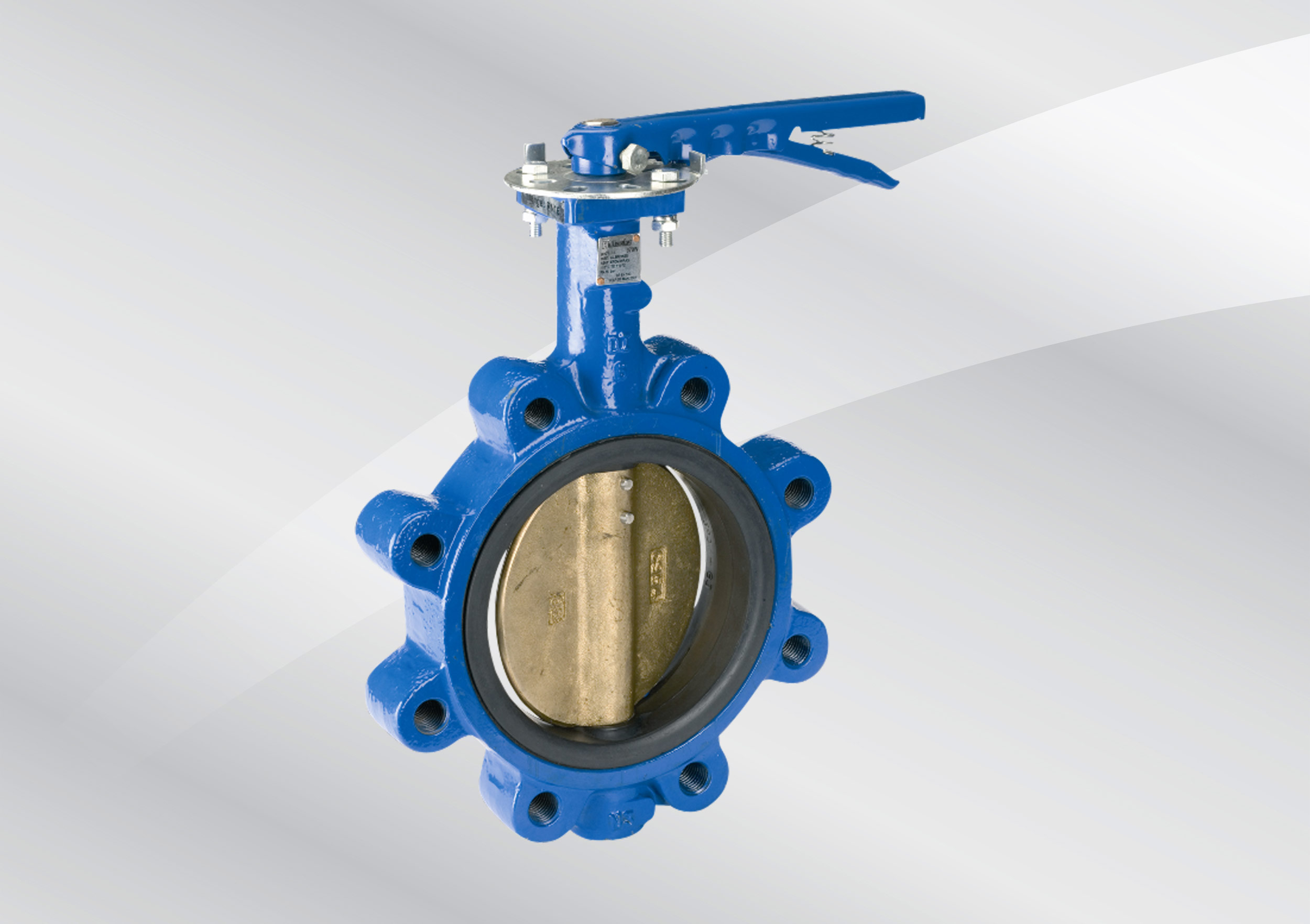

Fig. 980

ANSI Export Butterfly Valve – Ductile Iron

in the a
  • Ductile Iron Fully Lugged Butterfly Valve Class 150.
  • Generally Conforms to BS EN 593.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Operating Pressure
19.65 bar from -10 to 37.8 degrees celcius
16.93 bar at 120 degrees celcius
Test pressure
Body: 29.5 bar
Seat: 21.6 bar
Pressure rating
Class 150
Material
Ductile Iron

Product Downloads

Datasheet
Installation Manual
BIM
Additional Files

Related Products

Fig. 4925 & 4925G

Butterfly Valve - Ductile Iron

Fig. 2870MG / 2871MG / 3870MG / 3871MG / 4870MG / 4871MG

Fully Lugged Gearbox Operated Butterfly Valves - Ductile Iron

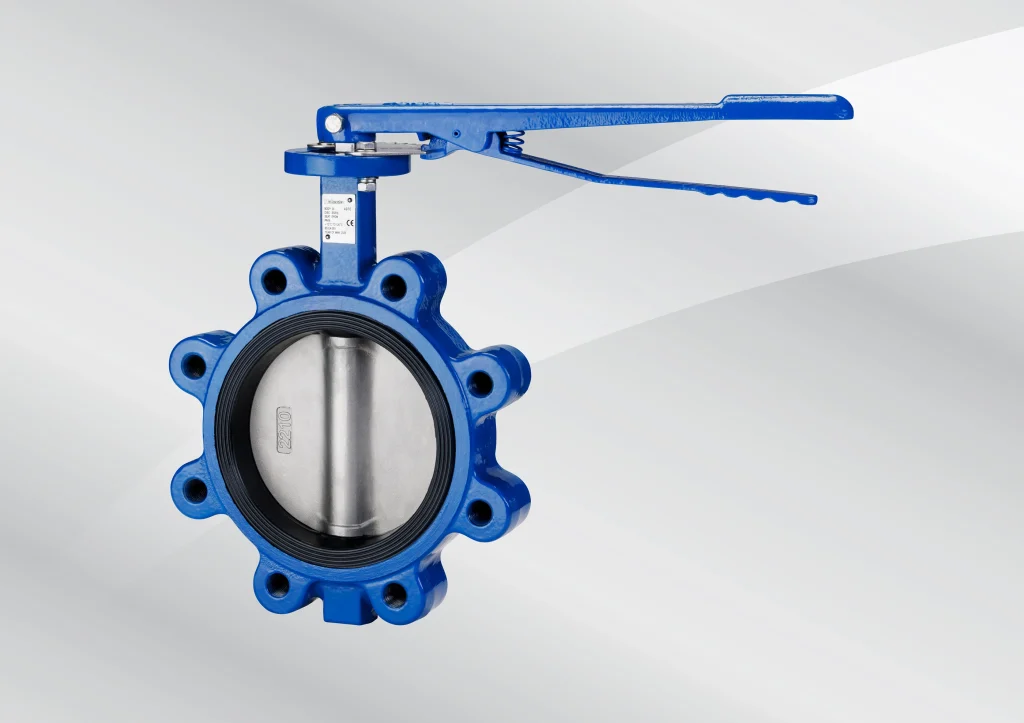

Fig. 2870ML / 2871ML / 3870ML / 3871ML / 4870ML / 4871ML
