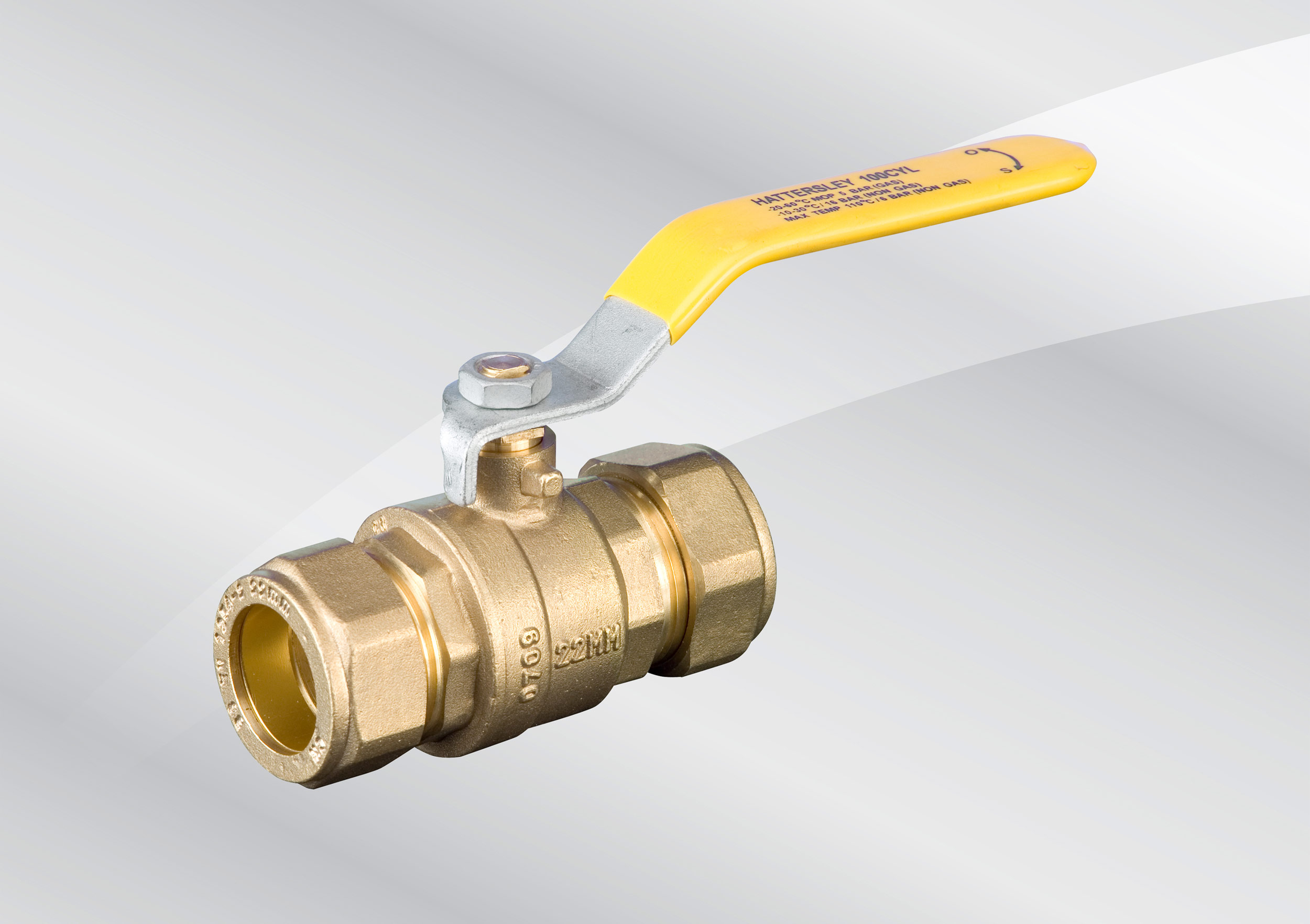

Fig. 100CYL

Ball Valves – DZR Brass

in the a
  • Dezincification resistant.
  • Light, compact, easy to install and operate.
  • Improved leak protection.
  • More resistant to damage during installation.
  • BIM File Available

Product Overview

Please refer to Datasheet for full technical information

Size
15mm to 28mm
Pressure rating
PN16
End Connnections
Compression ends to BS EN 1254-2:1998
Material
DZR Brass

Product Downloads

Datasheet
Installation Manual
CAD Files
BIM
Additional Files
Video
