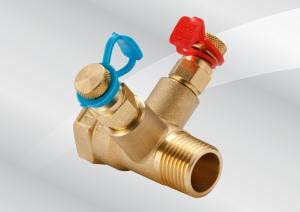

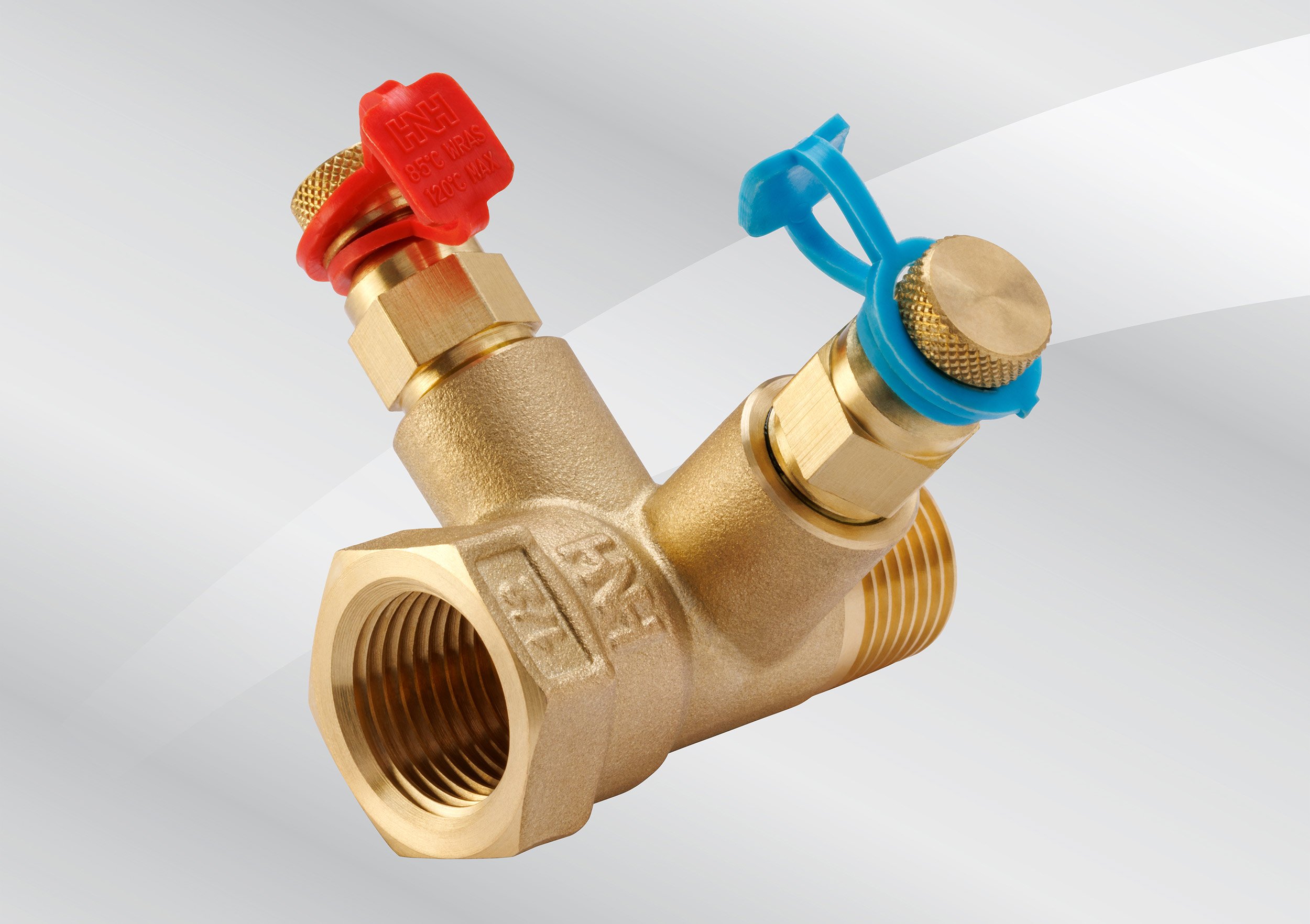

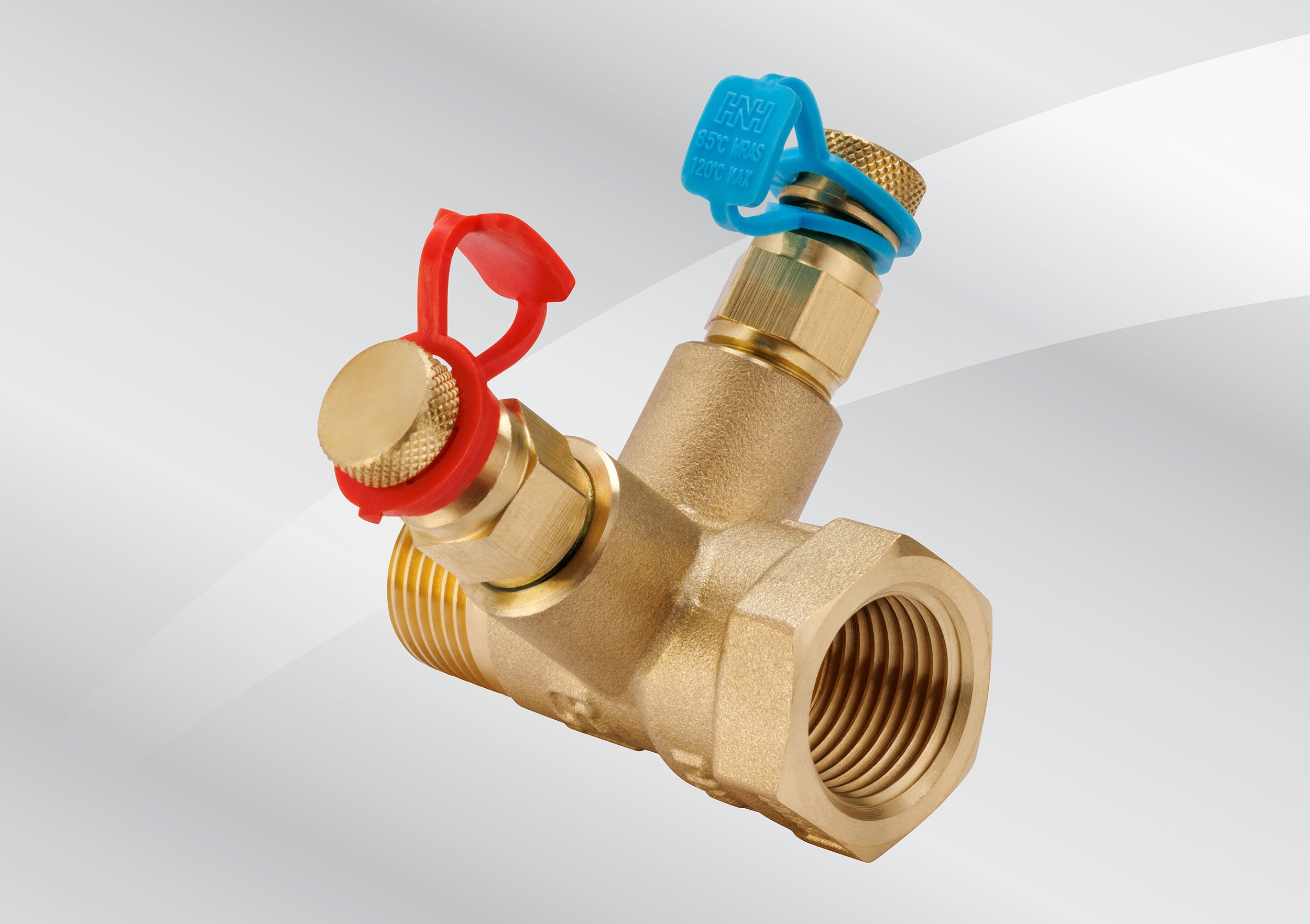

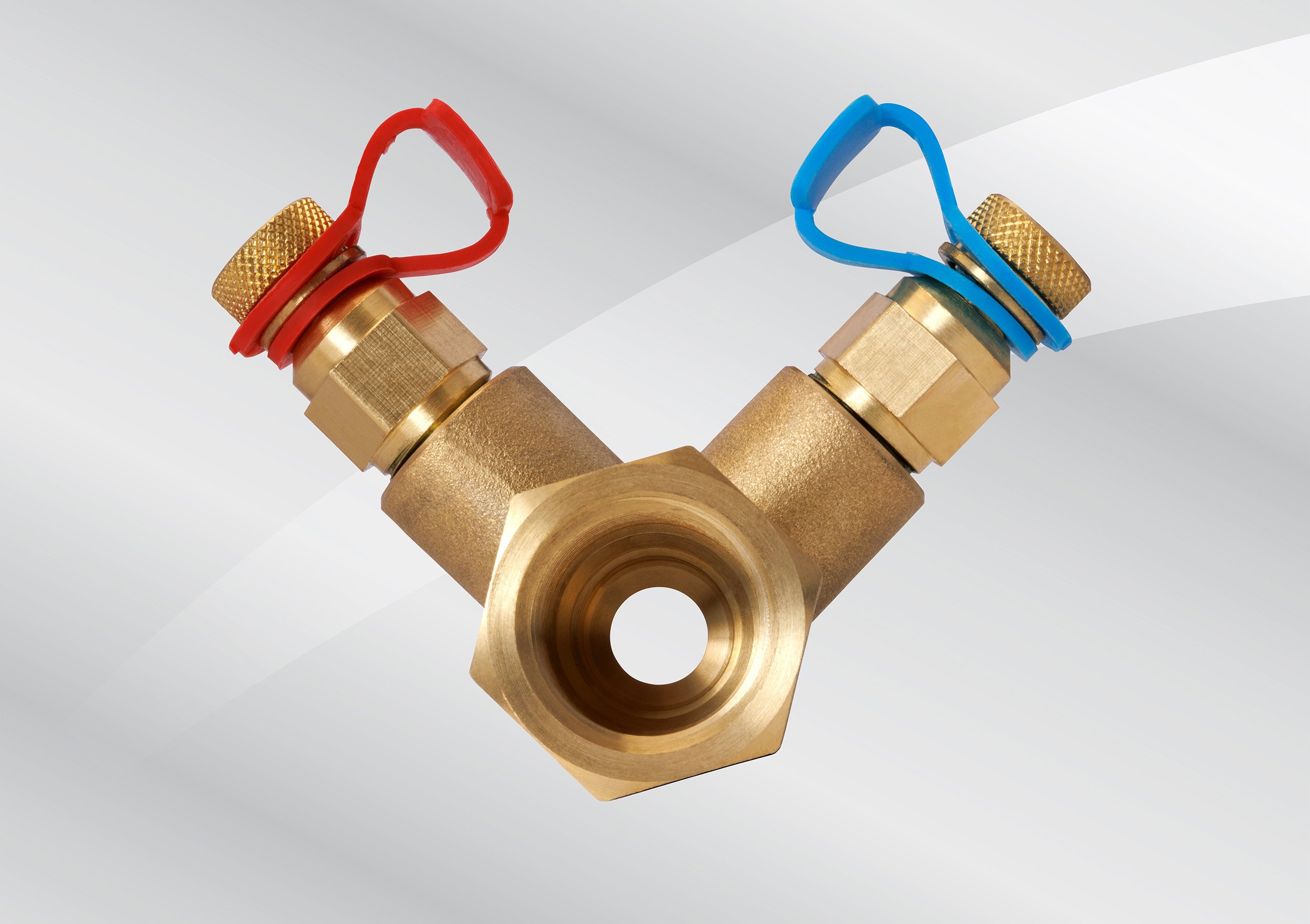

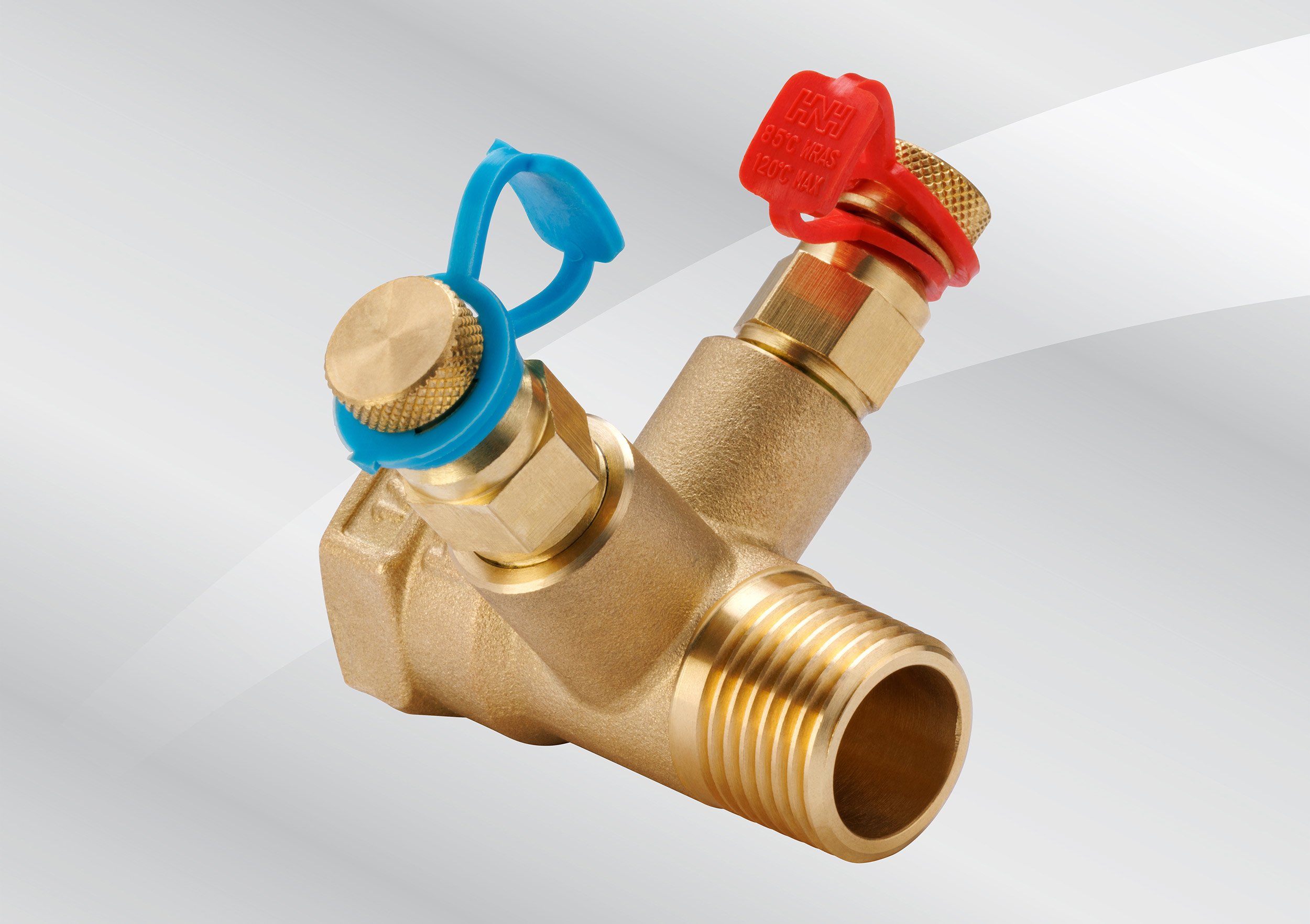

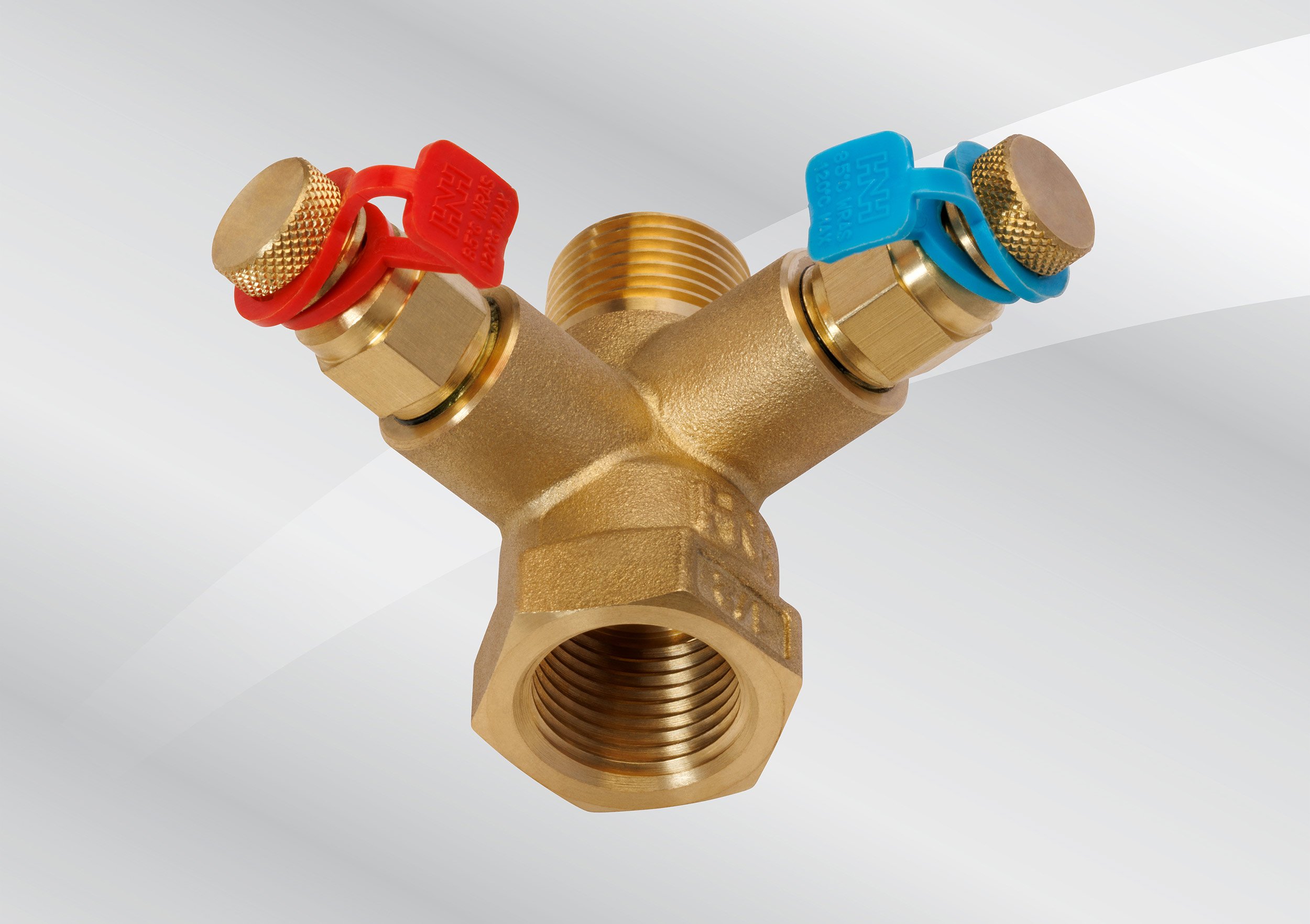

Fig. 1000

Metering Stations – DZR Brass

in the a Fig 1000 Metering Station Hattersley
Fig 1000 Metering Station Hattersley Fig 1000 Metering Station Hattersley Fig 1000 Metering Station Hattersley Fig 1000 Metering Station Hattersley Fig 1000 Metering Station Hattersley
  • Precise and accurate measurement, conforming to BS 7350:1990
  • Dezincification resistant material preventing corrosion cracking and fungal growth
  • WRAS Approved for use with potable water up to 85ºC
  • Supplied with red and blue test points for upstream and downstream port identification
  • WRAS Approved Product

Product Overview

Please refer to Datasheet for full technical information

Pressure rating
PN25
Temperature Rating
10 - 100°C
End Connnections
Please see Datasheet for details
Material
DZR Brass

Product Downloads

Datasheet
Installation Manual
CAD Files
BIM
Certificate
Additional Files
