Connected 2, 3, 4 Port

Hattersley PN16 rated control valves offer a compact and lightweight solution for a variety of variable flow and constant flow applications. Designed to work as a Normally Closed control valve, manufactured in Europe to the highest quality and precision you expect.

When Hattersley Fig. 1902, 1903 and 1904 valves are combined with the ACT1933TH to give on/off control, or with the ACT1934M actuators for modulating control, they provide the complete package for fast and reliable BMS connection and control of variable flow systems.

Fig. 1902

2 Port Valve

End Connnections: BSP Male Parallel Thread ISO-228 0JG93556V 1/2”
BSP x15mm solder adaptor is available when female end connection is required

Fig. 1903

3 Port Valve

End Connnections: BSP Male Parallel ISO-228 0JG93556V 1/2” BSP
x15mm solder adaptor is available when female end connection is required.

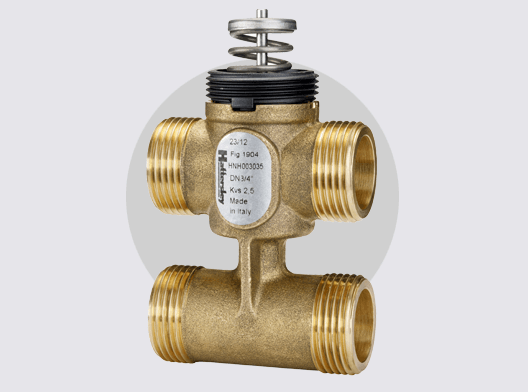

Fig. 1904

4 Port Valve

End Connnections: BSP Male Parallel ISO-228 0JG93556V 1/2” BSP
x15mm solder adaptor is available when female end connection is required.

D102B Cast Iron Hattersley

Fig. 1902 - Cast Iron

2 Port Valve

Size: DN20 / DN50
End Connnections: BSP Female Parallel ISO-228

D103B Cast Iron

Fig. 1903 - Cast Iron

3 Port Valve

Size: DN20 / DN50
End Connnections: BSP Female Parallel ISO-228

Fig. 1902F 2 Port Valve Hattersley

Fig. 1902F

2 Port Flanged Valve

Size: DN65/DN200
End Connnections: PN16 flanges

Fig. 1903F 3 Port Valve

Fig. 1903F

3 Port Flanged Valve

Size: DN65/DN200
End Connnections: PN16 flanges
